Mphi 75 نشان دهنده تکامل بیشتر خانواده MLS® است و از ویژگی ایمنی و سهولت استفاده به عنوان یک وسیله قابل حمل با اندازه و وزن کافی را به ارث برده است.

• Password to operate the device
• Language option
• Ready to be connected to the remote Laser emission signaling device

INCLUDED ACCESSORIES

• Nº 2 Light Guide for Laser puncture
• N° 2 Laser Safety Goggles
• Unit carrying case
• Table handpiece holder
• Shoulder strap for portable use

OPTIONAL ACCESSORIES

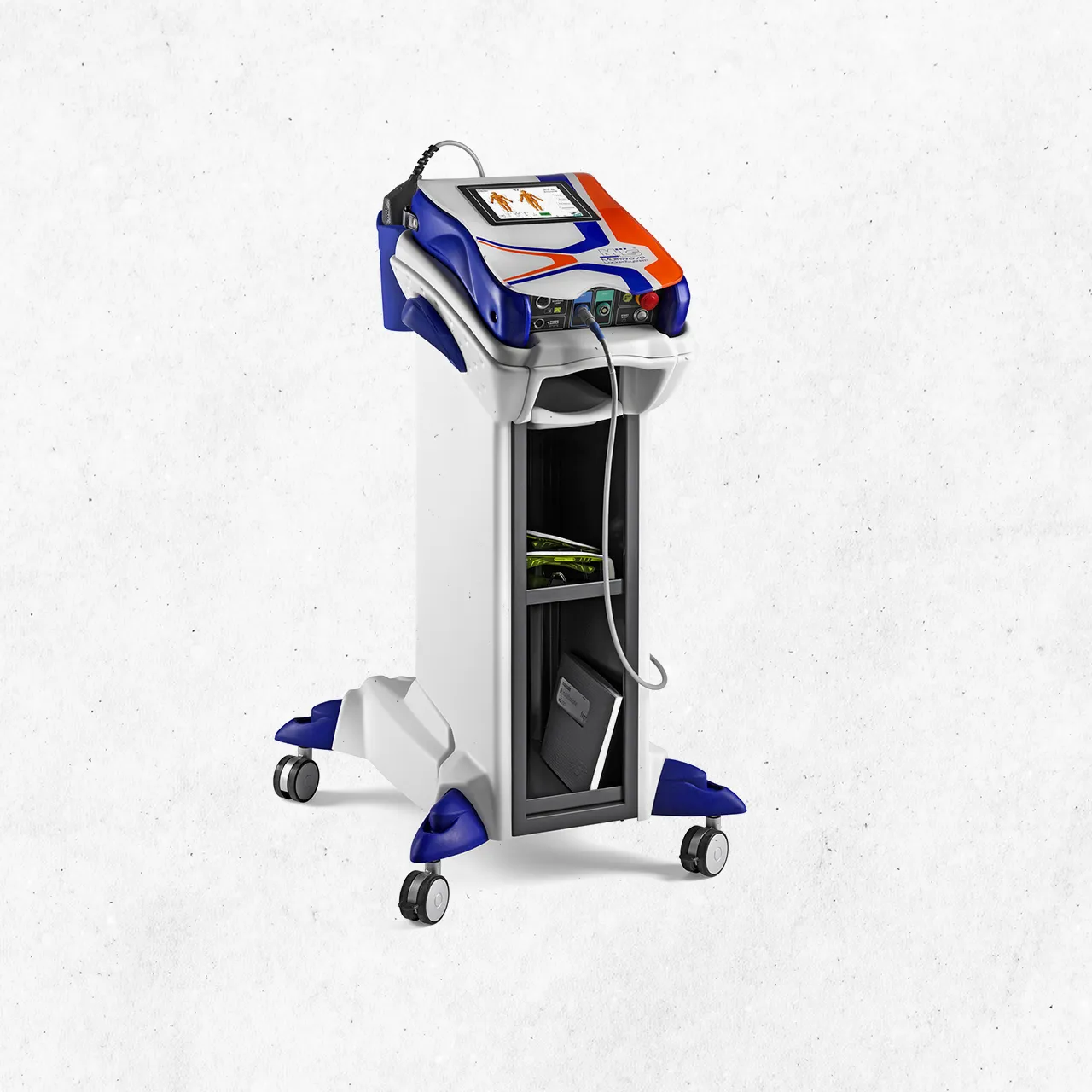

• Trolley-Ergonomic trolley designed for holding Mphi 75, with bumper-protected wheels, a built-in handpiece holder and two storage compartments

SIZE AND WEIGHT

• 36 x 28 x 10 cm
• 3 Kg

POWER SUPPLY

• Lithium polymer battery
• External power supply 18Vdc 50VA

OPTIONAL ACCESSORIES

• Trolley-Unit carrying

• Handpiece with optical group consisting of an MLS^® source with power up to 1.2 W – Peak Power 75 W
• Therapeutic terminal, Target Area of ø 2 cm highlighted by high-efficiency red LED light
• Laserpuncture terminal, Target Area of ø 4 mm highlighted by high-efficiency red LED light
• Color touch screen display with anatomical images
• Simultaneous management of two independent channels
• 5 treatment modalities:
  A) specific pathologies
  B) pain management
  C) anti-edema
  D) biostimulation
  E) Laserpuncture
• Possibility to customize every treatment parameters
• Dedicated area to create and save new customised programmes for each terminal/applicator
• MLS^® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
• Modulation frequency from 1 to 2000 Hz with 1 Hz steps
• Power level 25%, 50%, 75% and 100%
• Fixed duty cycle at 50% or variable
• Treatment duration from 1” to 99’59” with 1” steps
• Automatic calculation of the emitted energy according to the settled parameters

ALARMS AND SAFETY FEATURES

• Laser emission warning light
• Interlock
• Acoustic signal selectable by operator
• Date and time

“امکان ترکیب کیفیت و کارآیی MLS® با یک وسیله مفید و قابل حمل چیزی است که تعادل را بهم می زند.در لحظات پر اضطراب و پر هیجان دور مقدماتی یا قبل از مسابقه ، یک ورزشکار اغلب به یک درمان “خانگی” نیاز دارد که بتواند نتایج فوری را ارائه دهد “.
